High Precision Hydraulic Flexible Jaw Coupling For Construction Machinery

Product Categories
Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd.
Contact Now

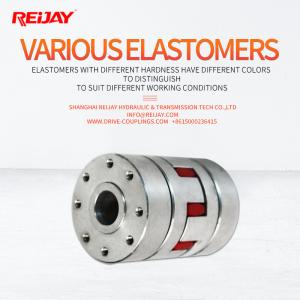

High Precision Hydraulic Flexible Jaw Coupling For Construction Machinery

  • 1
  • 2

Brand Name : REIJAY

Model Number : RA

Certification : ISO CE

Place of Origin : China

MOQ : 1 set

Price : USD10.00-USD50.00

Payment Terms : T/T, D/P, Western Union

Supply Ability : 500 set/ month

Delivery Time : 7 days

Packaging Details : Yes

Product name : Jaw Coupling

Material : Alu, GG, St

keywords : ROTEX Coupling Replacement

Quotation : FOB, EXW and other Methods

Advantage : High quality and high precision

Application : Hydraulic and Construction Machinery

Warranty : 2.5years

Packing : Wood Pallet/Standard Export Packing

Flexible or Rigid : Flexible

Structure : Jaw / Spider

Contact Now

High Quality and High Precision Jaw Coupling for Hydraulic and Construction Machinery

The Rexroth Coupling Replacement Flexible Jaw Coupling is processed by turning, milling and broaching, and then is subject to overall heat treatment. In order to ensure sufficient mechanical strength, there is also a jaw plate on the market. It is a casting that can be mass produced to eliminate processing losses. So in terms of price, it is much lower than machining. However, the performance of the casting is not good, and it is not recommended to use it under some important working conditions. In addition, the jaw of the casting is easy to fall off under high-speed or high load conditions.

Technical Specifications

Type Bans Dimensions [mm] Weight Special Hub length
Finish bores L1 +
HubA HubB
mln max min max A B Ba L L2 E s b C C1 dh g f H* [kg] [mm]
Material: Die cast Aluminium
A15 　 　 4 15 26 　 26 28 10 8 1 6 　 　 12 M5 5 8 0.025 　
Al 9/24 6 19 19 24 40 32 39 66 25 16 2 12 20 21 18 M5 10 14 0.13 55
A24/32 8 24 16 32 55 40 53 78 30 18 2 14 24 26 27 M5 10 16 026 60
A28/38 10 28 28 38 65 48 63 90 35 20 2.5 15 28 29 30 M6 15 18 0.46 60
A38/45 14 38 38 45 80 66 79 114 45 24 3 18 37 39 38 M8 15 19 0.90 70
Material: Castimn (GG), SG Iron (GGG), Steel (St), Sintered steel (Si)
A14/16 Sint 　 　 4 16 30 　 30 35 11 13 15 10 　 　 10 M4 5 12 0.14 185
A19/24 GG/St/Si 6 19 12 24 40 32 39 66 25 16 2 12 20 21 18 M5 10 14 035 55
A24/32 GG/St/SI 10 24 14 32 55 40 52 78 30 18 2 14 24 26 27 M5 10 16 1.0 60
A28/38 GG/St/Si 12 28 28 38 65 45 62 90 35 20 25 15 28 29 30 M6 15 18 1-6 80
A38/45 GG/GGG/SVSi 14 38 38 45 80 66 77 114 45 24 3 18 37 37 38 M8 15 19 023 110
A42/55 GG/GGG/St 19 42 42 55 95 75 94 126 50 26 3 20 40 40 46 M8 20 21 3.6 no
A48/60 GG/GGG/St 19 48 48 60 105 85 102 140 56 28 3.5 21 45 45 51 M8 20 22 4.8 no
A55/70 GG/GGG/St 19 55 55 70 120 98 118 160 65 30 4 22 52 52 60 M10 20 23 7.4 140
A65/75 GG/GGG/St 22 65 65 75 135 115 132 185 75 35 4.5 26 61 59 68 M10 20 27 10.9 140
A75/90 GG/GGG/St 30 75 75 90 160 135 158 210 85 40 5 30 69 65 80 M10 25 31 177 195
A90/100 GG/GGG/St 40 90 90 100 200 160 180 245 100 45 5.5 34 81 81 100 MIO 25 35 29.5 140/210
A100/110 GG/GGG/St 　 　 55 110 225 　 200 270 110 50 6 38 　 89 113 M12 30 39 435 　
A110/125 GG/GGG/St 　 　 65 125 255 　 230 295 120 55 6.5 42 　 96 127 M16 35 43 063 　
A125/145 GG/GGG/St 　 　 65 145 290 　 265 340 140 60 7 46 　 112 147 M16 40 47 095 　

High Precision Hydraulic Flexible Jaw Coupling For Construction Machinery

Our Strategic Partners

High Precision Hydraulic Flexible Jaw Coupling For Construction Machinery

Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.

FAQ

Q: Who are we?

We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.

Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment

Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters

Q: What can you buy from us?

Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.

Q: Why should you buy from us, not from other suppliers?

We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.

Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.

Q: What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；

Accepted Payment Currency: USD, EUR, HKD, CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;

Language Spoken: English, Chinese, Spanish
