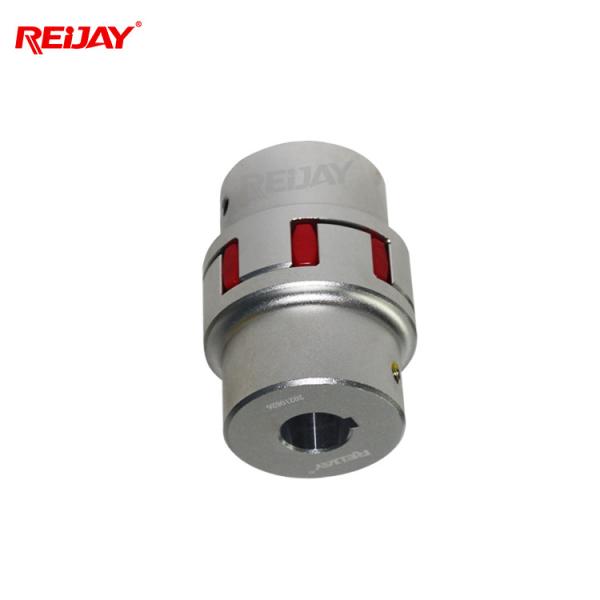

Replacement Flexible Jaw Coupling For Medium High Speed Occasions

  • 1
  • 2

Brand Name : REIJAY

Model Number : 55/70

Certification : ISO CE

Place of Origin : China

MOQ : 1 set

Price : USD10.00-USD50.00

Payment Terms : T/T, D/P, Western Union

Supply Ability : 500 set/ month

Delivery Time : 7 days

Packaging Details : Yes

Material : Alu and GG

keywords : Spidex Coupling Replacement Flexible Jaw Coupling

Standard : IEC Standard motor and Nemo motor

Service : Online support

Outside Diameter(D) : 26mm ~ 420mm

Hole Diameter(d) : 4mm-200mm

Structure : jaw/spider

Warranty : 2 years

Packing : Wooden case

Product Name : Flexible Jaw Coupling

Brand : Reijay

Contact Now

Stable And Reliable Spidex Coupling Replacement Flexible Jaw Coupling For Medium And High Speed Occasions

Spidex Coupling Replacement Flexible Jaw Couplings are commonly used to connect continuous duty motors to drive machinery, pumps and gearboxes. They usually accommodate angular axis deviations of up to one degree and parallel deviations of up to a few tenths of an inch.

Specifications of Flexible Jaw Coupling

Dimensions Max. Radial displacement ormax.angular displacement n=1500tnin-1 Torque(Nm) Dimensions Max radial displacement with 1°angular displacement and n=15001/mln Max axial displacement Hexagon screws
DIN933
8.8 or 10.9
Spec OD H LTB G S BSE OAL (ASPC) Tkn Tkmax F SL OAL ADSPC Screw Spec Screw Quartty Torque TA[Nm]
100 140 180 250
19 40 18 25 16 10 42 92 0.65 Each
Sleeve
Hub
1°30'		 　 　 　 　 　 　 　 　 　 　 　 　 　
24 55 27 30 18 16 52 112 0.89 35 70 8 52 BSE+60 1.4 　 　 　 1.4 M5 16 6
28 65 30 35 20 18 58 128 1 95 190 10 60 BSE+70 1.4 　 　 　 1.5 M6 16 14
38 80 38 45 24 20 68 158 1.15 190 380 10 68 BSE+90 1.3 2 　 　 1.8 M8 16 35
42 95 46 50 26 22 74 174 1.26 265 530 12 76 BSE+100 　 2 　 　 2 M8 16 35
48 105 61 56 28 24 80 192 1.36 310 620 12 80 BSE+112 　 2 　 　 2.1 M8 16 35
55 120 60 65 30 28 88 218 1.52 410 820 16 92 BSE+130 　 1.9 2.6 3.8 2.2 M10 8 69
65 135 68 75 35 32 102 252 1.75 625 1250 16 102 BSE+150 　 　 　 3.8 2.6 M10 12 69
75 160 80 85 40 36 116 286 2 1280 2560 19 118 BSE+170 　 　 2.4 3.7 3 M12 15 120
90 200 100 100 45 40 130 330 2.5 2400 4800 20 130 BSE+200 　 　 　 3.5 3.4 M16 15 295

Replacement Flexible Jaw Coupling For Medium High Speed Occasions

Our Strategic Partners

Replacement Flexible Jaw Coupling For Medium High Speed Occasions

Founded in 2003, Shanghai Reijay Hydraulic & Transmission Tech Co., Ltd focus on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger products (oil heating and cooling equipment) manufacture and export. We also provide relevant technical support and service. We also serve customers with the design, assembly, remoulding and maintenance of industrial automation components (pneumatic, hydraulic, PLC), industrial intelligent systems, hydraulic power units and drive sections.

FAQ

Q: Who are we?

We are based in Shanghai, China, started in 2003, sell to Domestic Market(50.00%), North America(25.00%), Europe(5.00%), Africa(5.00%), Southeast Asia(5.00%), South America(5.00%)... There are about 180-300 people in our office and factory.

Q: How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment

Q: What information should I tell you to confirm the product?
Motor drawing or other technique parameters

Q: What can you buy from us?

Couplings, Bellhousings, Oil tanks, Cleaning Covers, Coolers, Hydraulic parts, etc.

Q: Why should you buy from us, not from other suppliers?

We are a professional OEM manufacturer with 20 years of history, focusing on mechanical power transmission coupling, hydraulic system spare parts and heat exchanger product manufacture and export. We also provide relevant technical support and service.

Q: What is your product warranty period?
We offer 2-10 years of service life since the vessel departure date left China.

Q: What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, Express Delivery；

Accepted Payment Currency: USD, EUR, HKD, CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union;

Language Spoken: English, Chinese, Spanish
